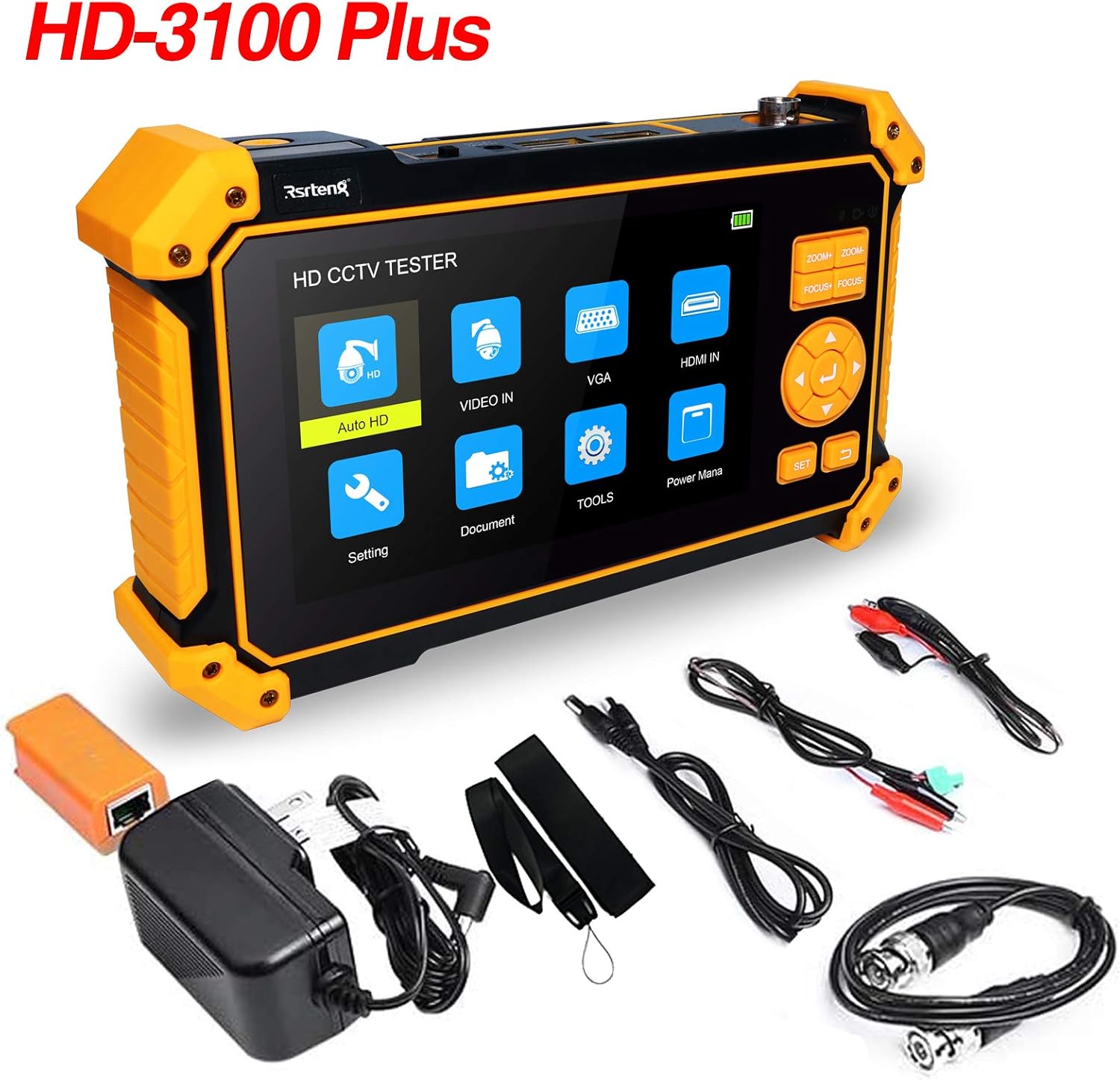

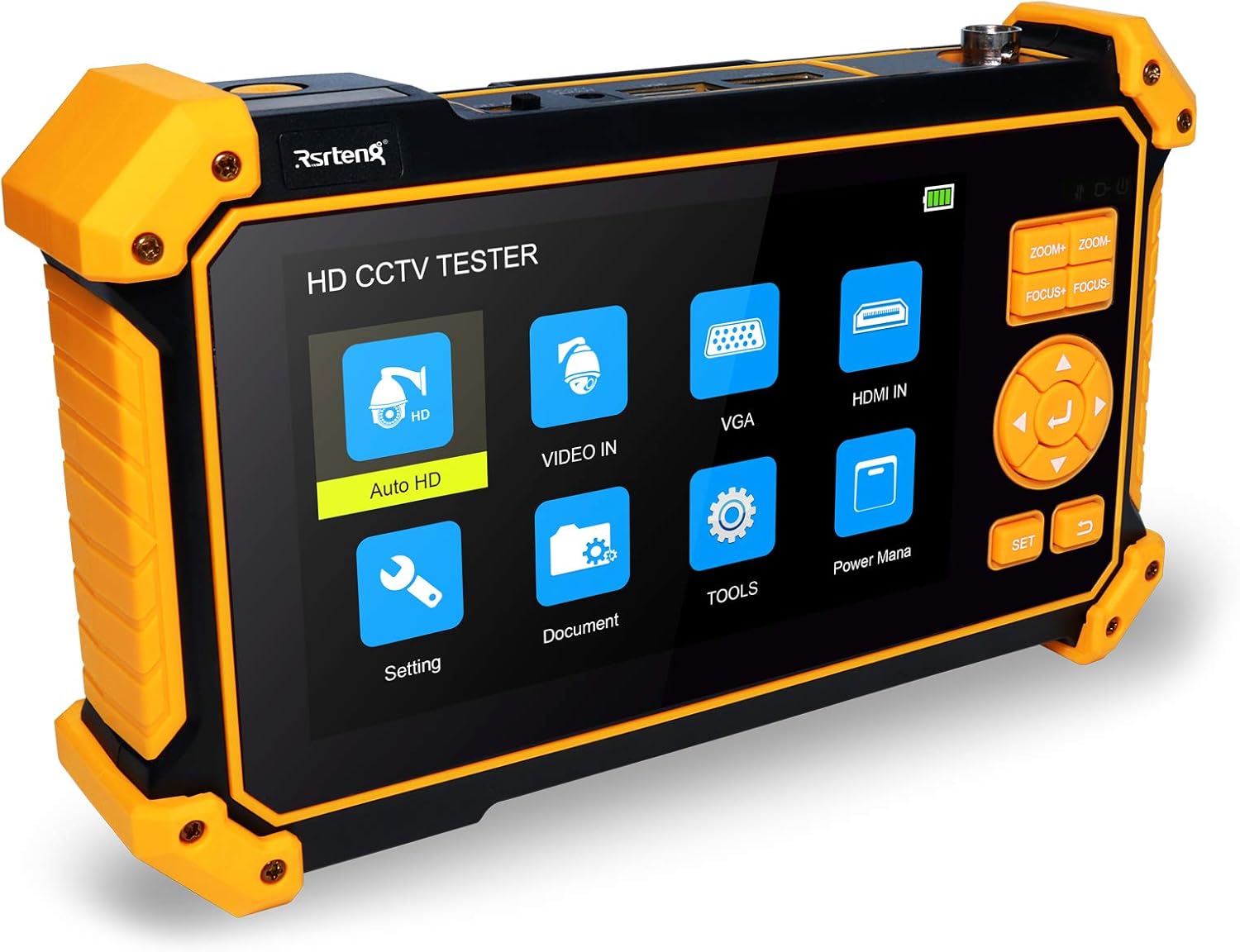

5 inch TFT-LCD CCTV Tester Monitor U28997
5 inch TFT-LCD CCTV Tester Monitor U28997
4-in-1 Multifunction CCTV coaxial camera test.●Support Analog CVBS camera test, NTSC/PAL (Auto adapt); ●8MP TVI test, 3840 x 2160P 12.5/15 FPS; ●8MP AHD test, 3840 x 2160P 15 FPS; ●8MP CVI test, 3840 x 2160P 12.5/15FPS. ●NOTE:THIS TESTER DOESN’T SUPPORT IP NETWORK CAMERA TESTER

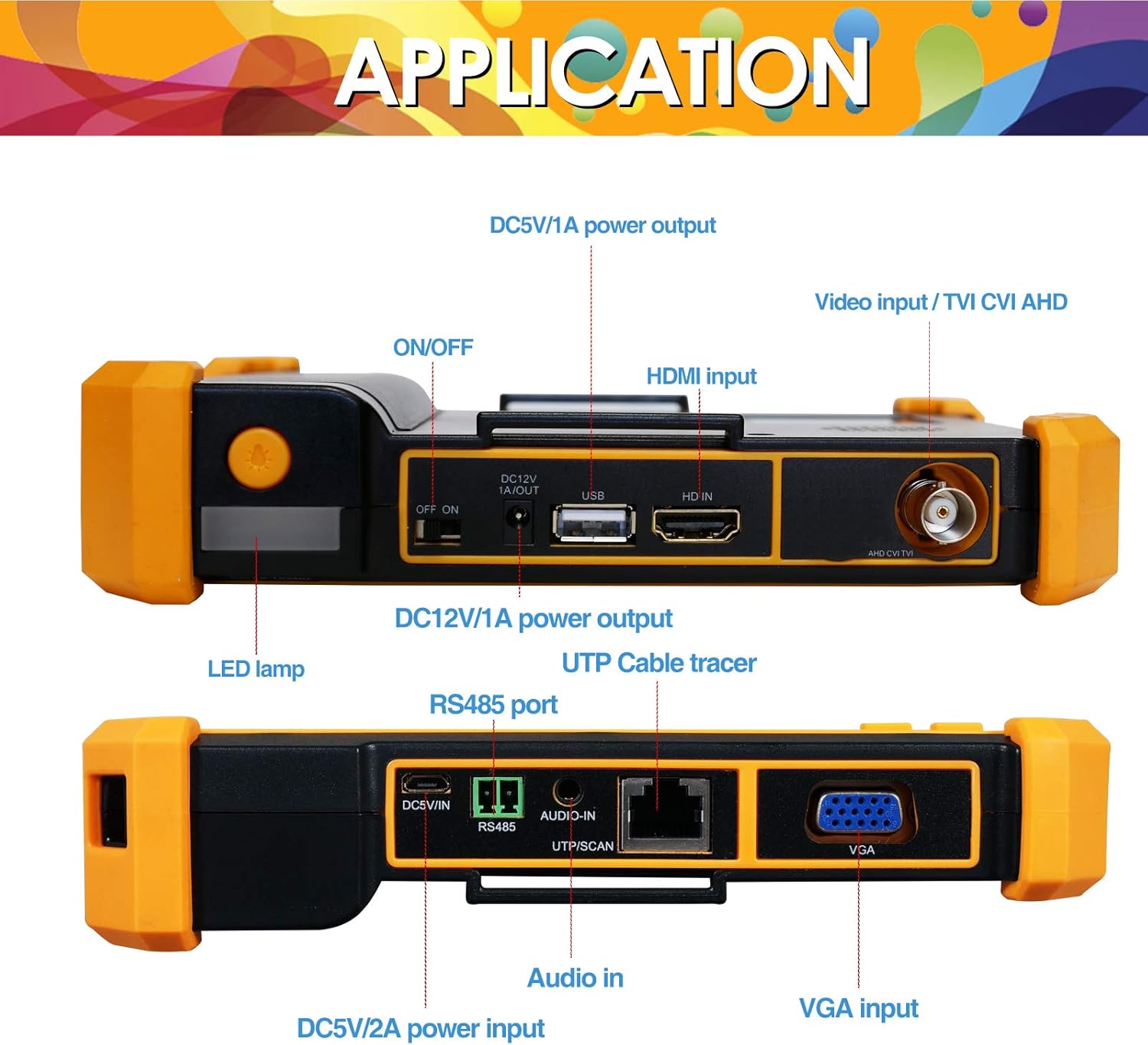

5 inch TFT-LCD screen, 800*480 resolution; ●Audio in, support record and save the audio ●LED lamp ●VGA input, up to 1920 x 1200 60fps ●HDMI Input, up to 4K 30fps, support snapshot, video record & playback ●DC12V/1A power output, supply temporarily power for the camera ●5V 1A power output, support reading USB disk
Auto HD app, auto recognize HD coax camera type and resolution, support video record & playback ●Coaxial PTZ (UTC control) & call OSD menu ●Support RS485
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug ●Media player, 4K video files and MKV/MP4 media files play ●1 channel audio signal input, test whether sound normal
3.7 V /5200mAh rechargeable battery, after 4 hours charging, working time lasts 6.5 hours; ●DC5V/2A power input; ●Working Temperature: -10~50C, Humidity 30%-90%.Dimension/Weight: 184x110x41mm(7.24x4.33x1.61inch)/0.4kg(0.88lbs)
NOTE:THIS TESTER DOESN’T SUPPORT IP NETWORK CAMERA TEST!!!
Model: HD-3100
Display

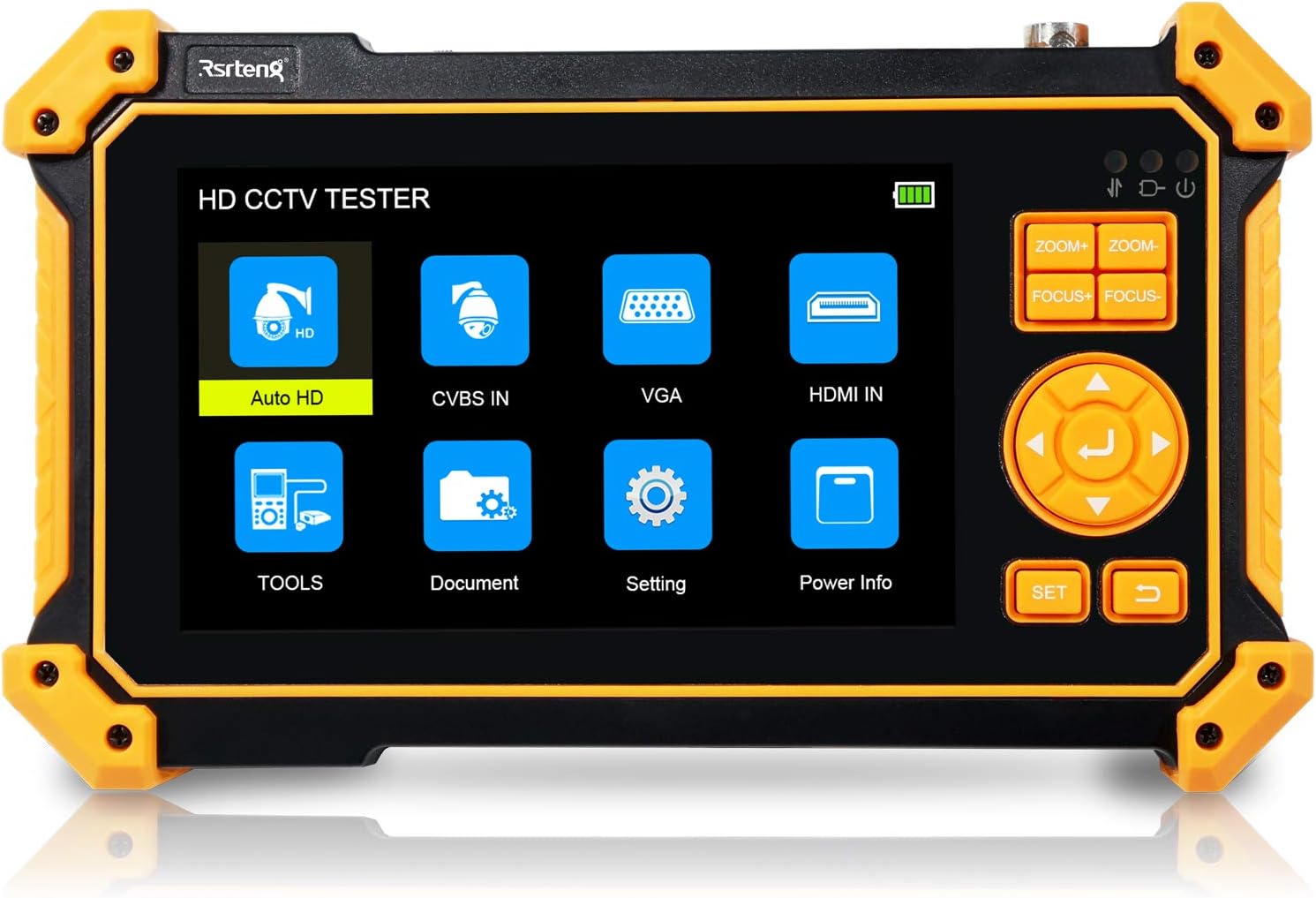

5” TFT-LCD screen(Non-touch screen), 800*480 resolution.
Video Mode
CVBS:
1* BNC input, Support coaxial CVBS camera tester. NTSC/PAL (Auto adapt).
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P, Samsung, Panasonic etc
Coaxial HD camera test:
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
8MP AHD camera test, 3840x2160P 15FPS, UTC control/call OSD menu.
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu
Others
Power: Input DC5V/2A; Output: DC12V/1A, DC5V/1A.

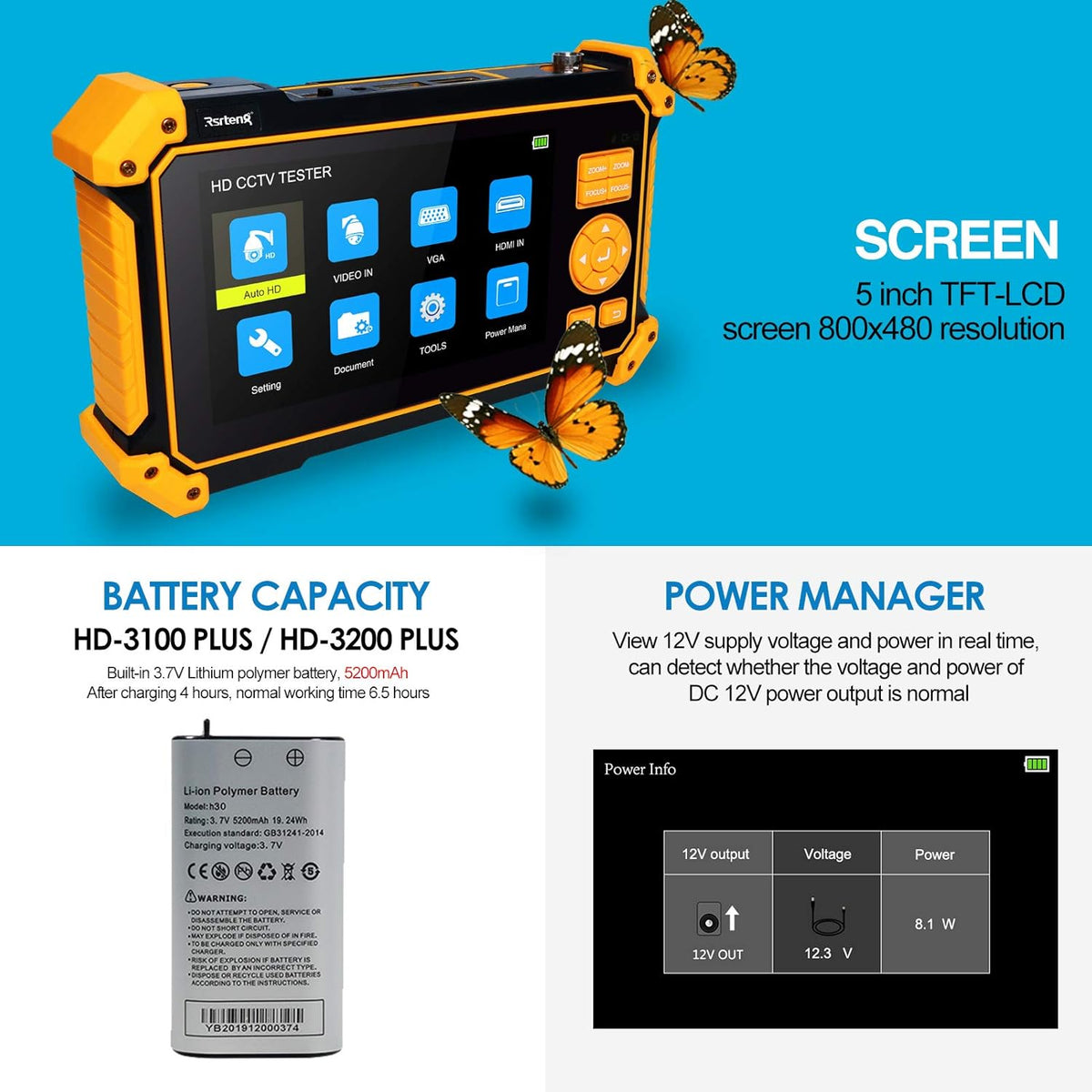

Battery: Built-in 3.7V battery, 5200mAh.normal working 6.5h.

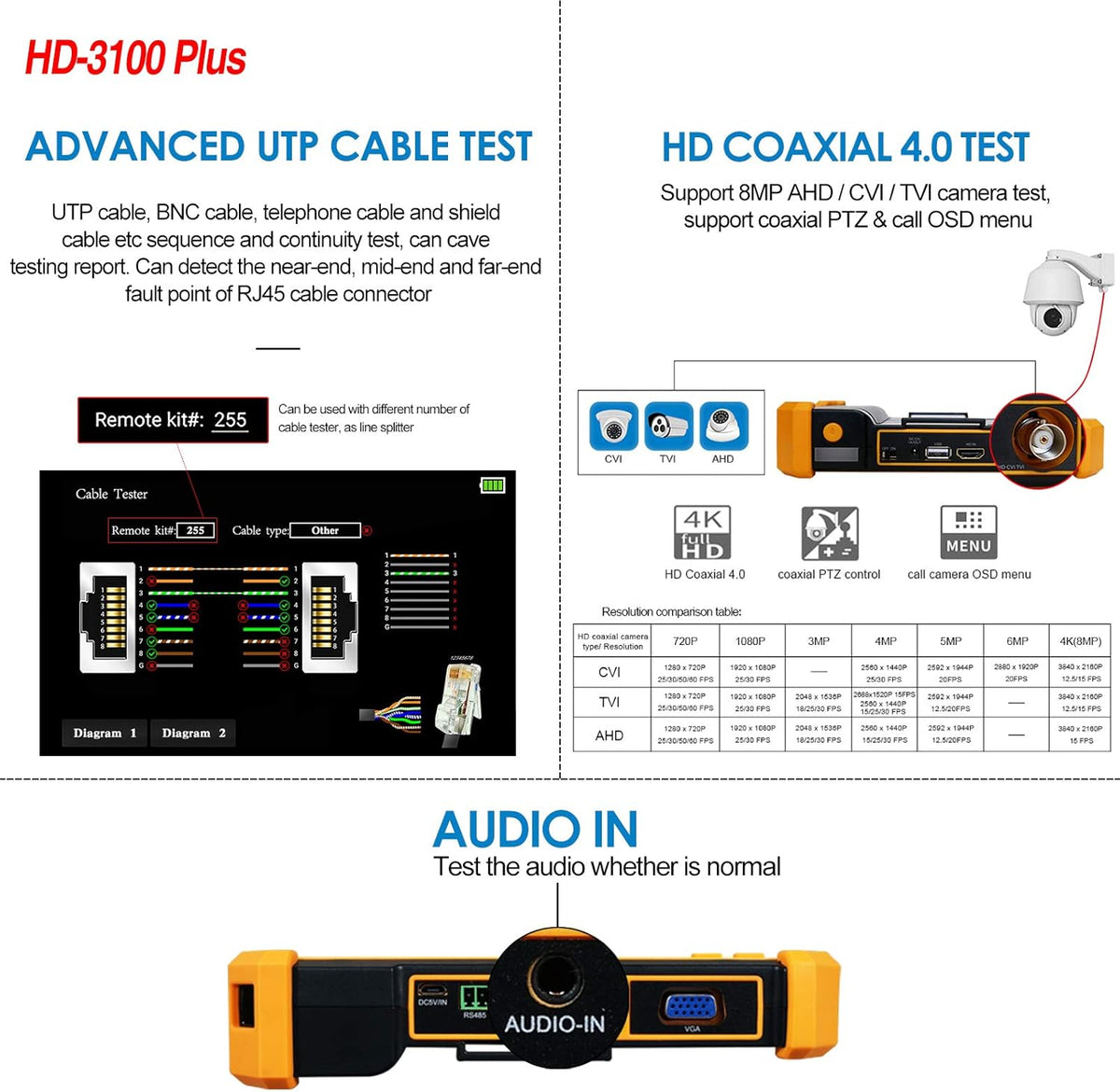

UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head..

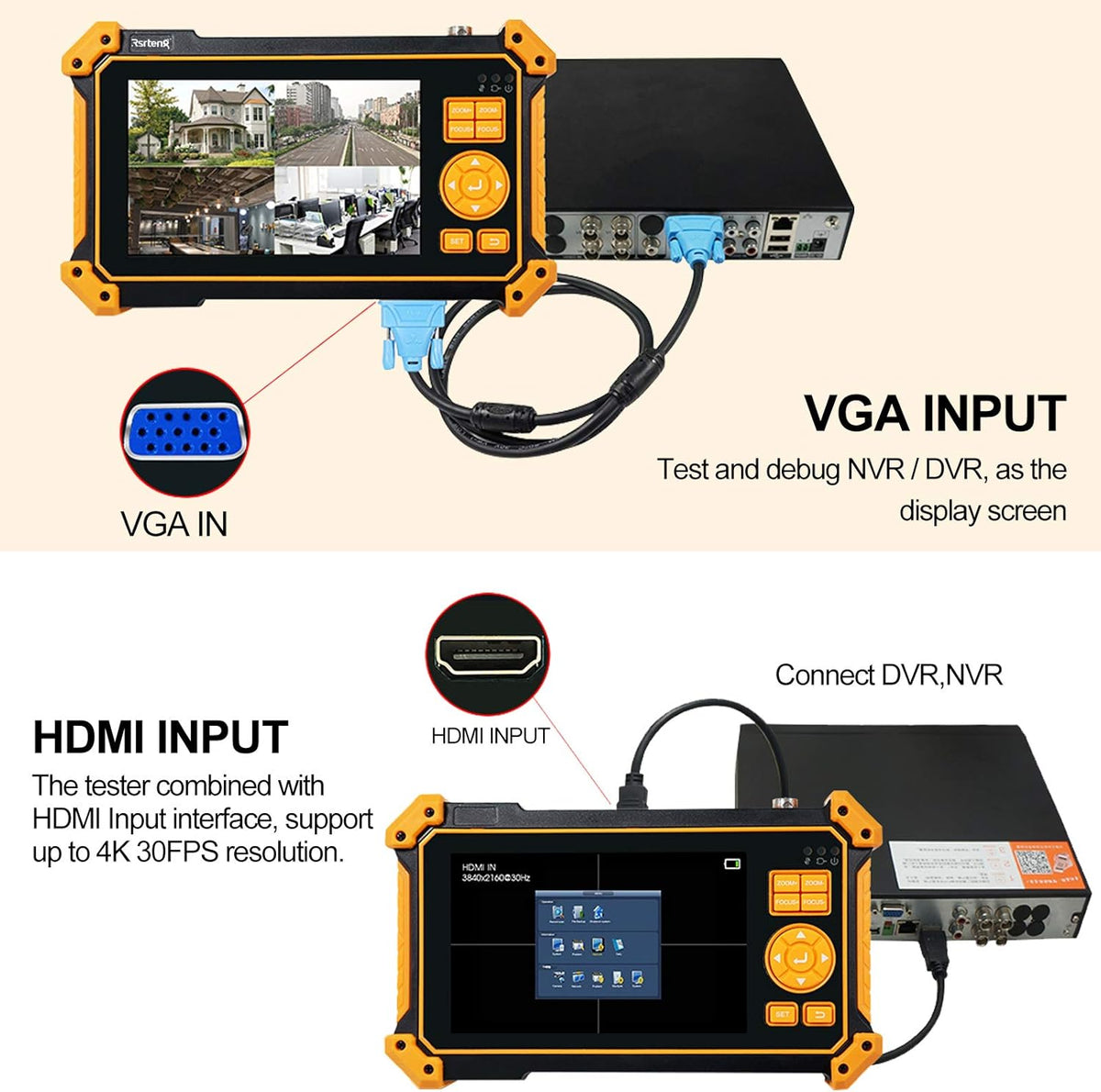

1 HDMI input, support max. 4K 3840 x 2160 30FPS
1 VGA input, support max. 1920 x 1200P 60FPS.
Audio input: 1 channel audio signal input, test whether sound normal.
language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Working Temperature: -10~50C, Humidity 30%-90%.
Dimension/Weight: 184x110x41mm(7.24x4.33x1.61inch)/0.4kg(0.88lbs)
